Automatic Side Sealing Soft Loop Handle Bag Patch Bag Poly-strings Bag D-cut Bag Making Machine

Automatic Side Sealing Soft Loop Handle Bag Patch Bag Poly-strings Bag D-cut Bag Making Machine

Brief introduction:

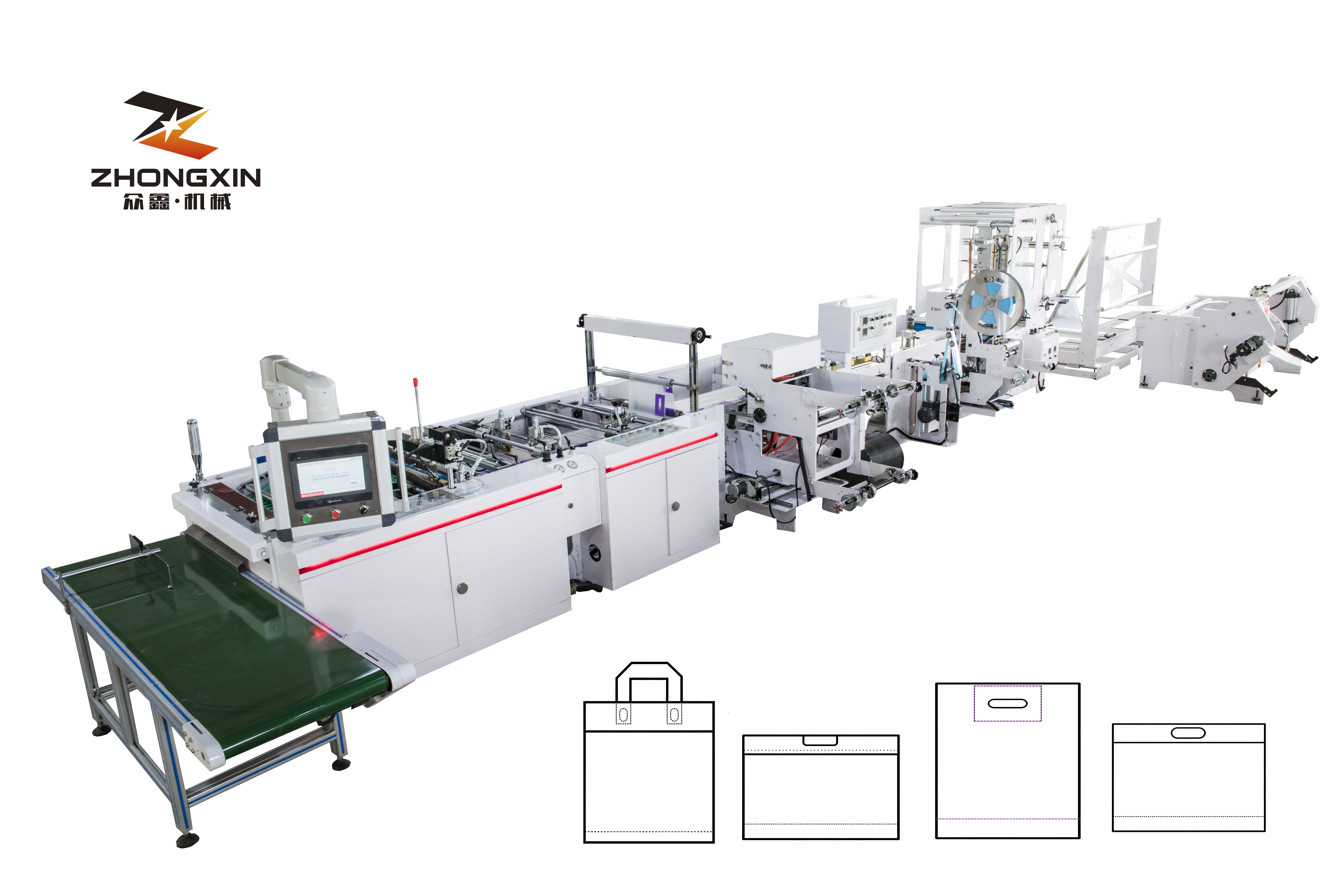

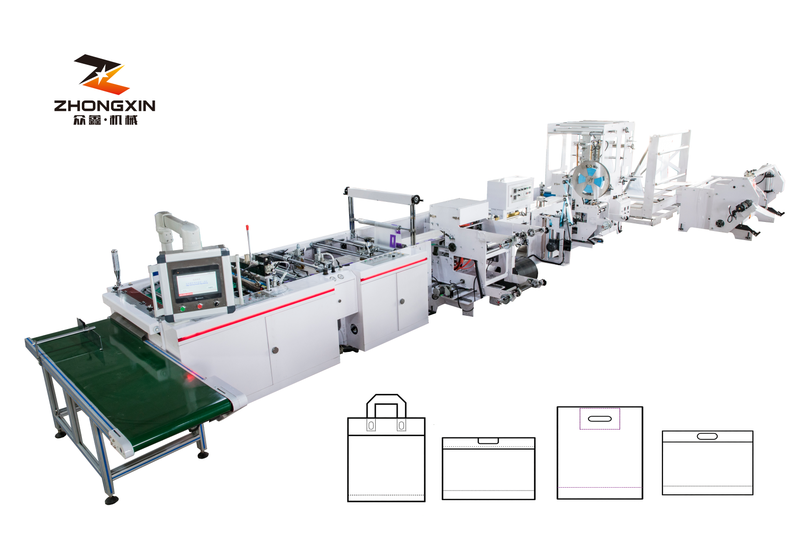

Full Automatic side sealing multifunctional bag making machine equipped with Weinview of Taiwan touch-screen advanced operation system. The raw material passed by automatic deviation correction , triangle folder, bottom gusset, top folded , heat sealing , ironing soft loop handle ,Poly strings , side sealing , discharge and other processes directly out of the finished products . It have photoelectric correction , automatic tension of magnetic powder , automatic counting , the automatic stop of no raw material ，electric-eye tracking and other features. It is one of the best advanced plastic bag manufacturing facilities on the market.

Feature:

（1）The tension of raw materials can be adjusted automatically during the operation of the machine.(The automatic tension control system is used for feeding)

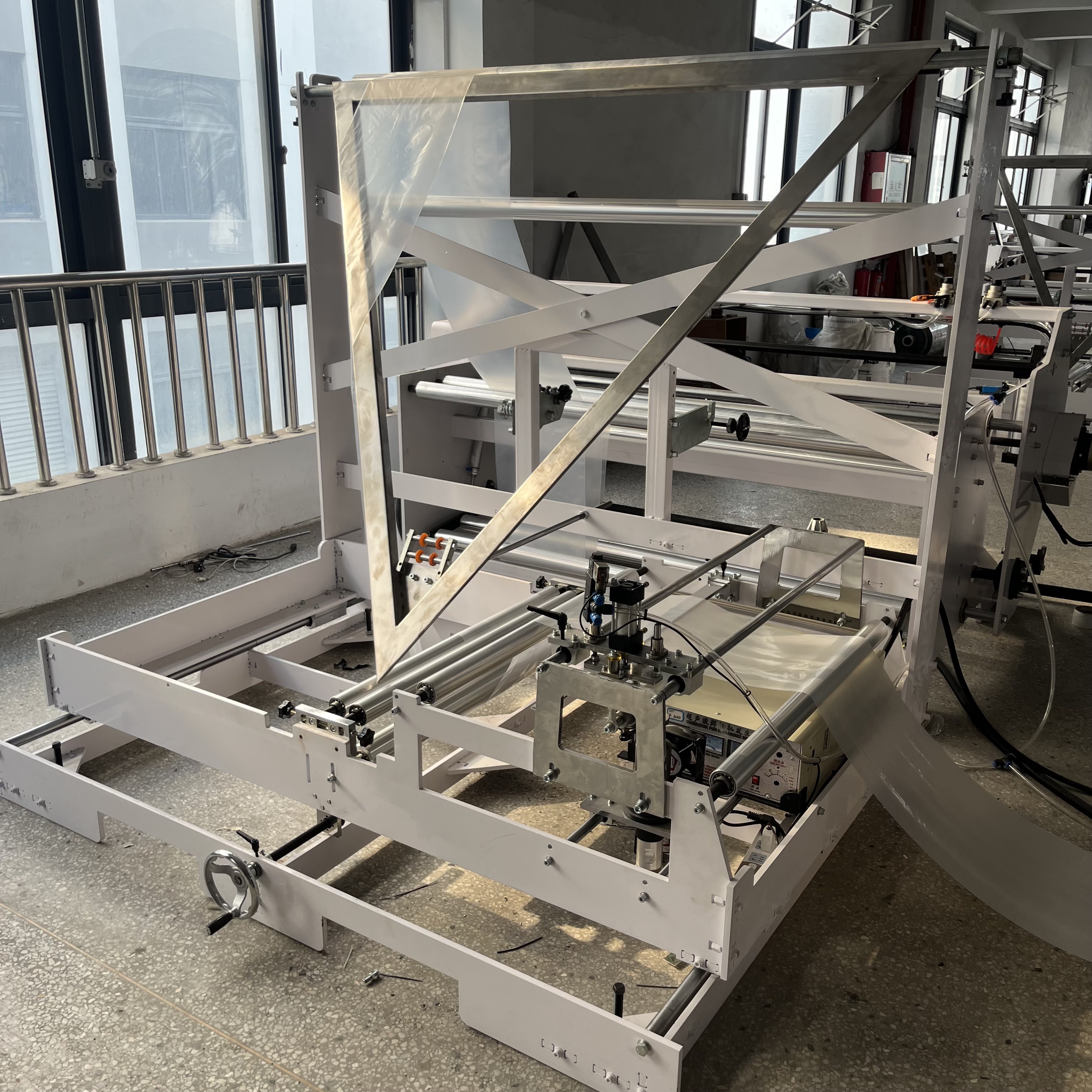

（2）The machine adopts pneumatic feeding, which is convenient and simple, and the air pressure can be adjusted.

（3）The machine adopts pneumatic traction rod, which make feeding more smoothly.

（4）Servo no stretch,the heat sealing is flat and good-looking.

（5）Full servo drive, make machine running stablely.

（6）It is equipped with automatic counting (bag making counting or soft loop handle counting),which can automatically calculate during operation.

（7）The conveying table adopts frequency conversion speed regulation to make the discharging more orderly and stable.

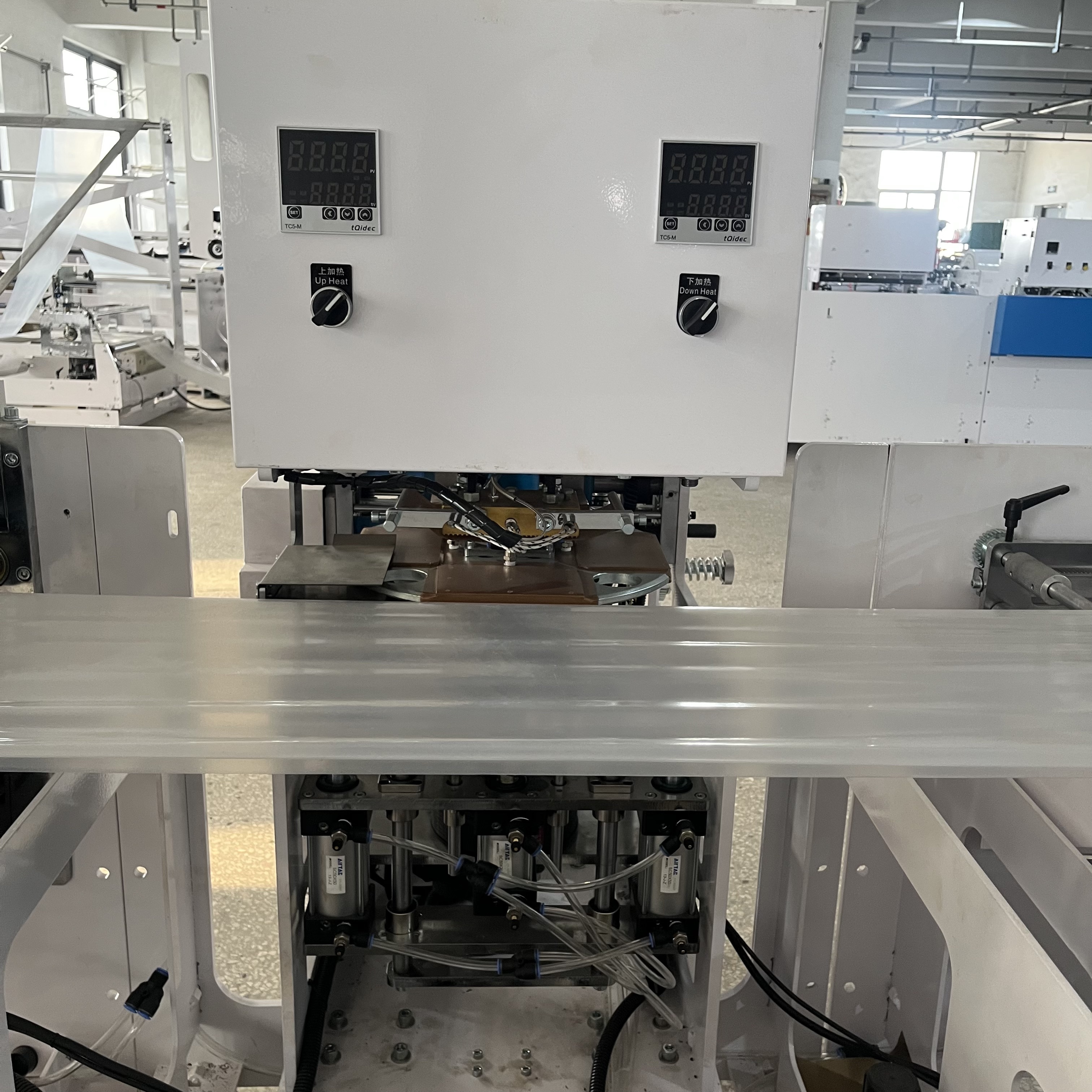

（8）There's a water cooling device on the edge of the heat sealing knife to make material more flat and firm.

Technical parameter:

Sample Bag
